ZipSpin 4-Bay Thunderbolt™ RAID System



Thunderbolt™ Technology is the newest, most powerful, and flexible I/O technology ever created for a personal computer today. It can be utilized to many products, but the most popular usage is in storage products. Thunderbolt™ technology offers lighting data transfer speed and the ability to daisy chain up to six devices without degrading the speed rates.

The Powerful Storage for Professionals: ZipSpin 4-Bay RAID System

Audio/Video editors or heavy data users will enjoy the speed, flexibility, and simplicity, delivered by the ZipSpin Thunderbolt™ RAID System. With speeds up to 12 times faster than FireWire 800, and twice as fast as USB 3.0, the ZipSpin Thunderbolt™ Series features RAID security, hot-swappable disks, and convenience of Daisy Chain. The onboard LED indicators keep users apprised of the system, connection, fan failures and disk status/access.

  • Connects via ThunderboltTM ports, up to 10 Gbps data transfer rate
  • Supports SATA hard drives (up to 6 Gbps) and SSDs
  • Multiple RAID modes: JBOD (None RAID), RAID 0 (Striping), RAID 1 (Mirroring), RAID 10 and HyperDuo
  • Compatible with Time Machine (Apple) for backups and file protection
  • Provides multiple devices with increased speed and flexibility via Daisy Chain
  • Monitors system status via LED indicators or GUI
  • Configures RAID modes easily using RAID MASTER (GUI)
  • Features effortless and trayless hard drive/SSD hot-swap & hot-plug with SmartGuider
  • Dissipates heat efficiently with aluminum housing and SmartGuider design
  • Maximizes airflow with silent fans and mechanical designs

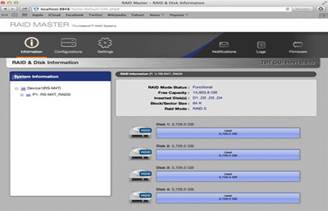

RAID on Thunderbolt™ RAID MASTER

SMART RS-M4T Thunderbolt™ RAID System permits straightforward hardware RAID mode- JBOD, RAID 0 (Striping), RAID 1 (Mirroring), RAID 10 and HyperDuo, which can be set by RAID MASTER. The RAID MASTER, GUI (Graphic User Interface), allows professionals and enterprises to centralize and effectively supervise complicated RAID applications. With the RAID MASTER, you can configure multiple RAID tasks, receive reports on any system problems, and customize RAID management for the RAID System!

This system also include 2 Thunderbolt Cables and four SmartGuider drive caddies for 3.5″ HDD.

  • HDD Support : 3.5-inch SATA HDD
  • Connector : Thunderbolt port x 2
  • Data Transfer Speed: Up to 10 Gbps
  • RAID mode : JBOD, RAID 0, RAID 1, RAID 10, HyperDuo (Safe/Capacity)
  • LED Indicator : Power/Connection Strength/Access/ Rebuild/RAID Alert/Fan Error
  • System Material : Aluminum case with plastic parts
  • Power Supply : Input: AC 100~240V; Output: DC 12V/4.16A
  • FAN : 2–High performance Cooling Fans
  • Dimension : 126 (L) x 138 (W) x 213 (H) mm 5 (L) x 5.4 (W) x 8.4 (H) inch
  • Weight (w/4 3.5 HDD): 9.2 lbs.
  • System Requirements : Mac OS 10.7 or above Computer with a Thunderbolt port

Additional information

Weight1 lbs
Dimensions6 × 3 × 2 in
