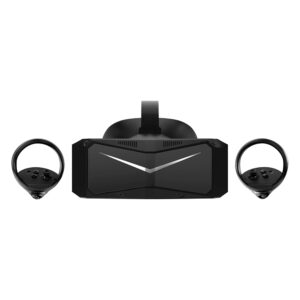

CRI PIMAX Crystal VR Kit

$3,995.00

Description

Click here to order this product on GSA Advantage

Click here to order this product on FedMall. Login to your account and go to Part # 753999.

Click here to download the specification



The CRI VIVE PRO EYE Kit has been upgraded to the newer PIMAX Crystal Headset. If still wanted, we can also provide the VIVE Pro 2 instead of the PIMAX but please consider the specifications below. This kit and headset are both external and inside-out. This means that this kit permits connecting to the included base stations or operating stand-alone. The resolution is also twice as high with the PIMAX operating at 8K.

🎮 VIVE Pro Eye vs. PIMAX Crystal – Specs Comparison



FeaturesVIVE Pro EyePIMAX Crystal
Release DateEarly 2019 (Wired)Late 2023
Display TypeDual 3.5″ AMOLED (OLED)Dual 3.2″ QLED + Mini-LED LCD
Resolution (per eye)1440 × 1600 (2.3 MP)2880 × 2880 (8.3 MP)
Total Resolution2880 × 16005760 × 2880
Refresh Rate90 Hz90–120 Hz (up to 160 Hz experimental)
Field of View (FOV)~110° diagonal110°–125° horiz (140° diagonal)
Pixels per Degree (PPD)~13 PPD~35 PPD
Eye TrackingBuilt-in (120 Hz, 0.5–1.1° accuracy)Built-in, 120 Hz
IPD AdjustmentManual slider (eye relief also adjustable)Motorized + manual, range 58–72 mm
TrackingExternal SteamVR Lighthouse 1.0/2.0Inside‑out (4 cameras), SteamVR optional
AudioHi‑Res certified removable headphonesBuilt-in off-ear speakers; optional high-fidelity DMAS
Weight~800 g~845 g headstrap only; ~960 g with battery
ConnectionsUSB-C 3.0, DisplayPort 1.2, BluetoothDisplayPort 1.4, USB-C, Wi‑Fi 6E, Bluetooth
Power ModesPC VR only; optional wireless adapterPC VR + standalone Snapdragon XR2; hot-swap battery
PC RequirementsGTX 970 / Radeon R9 290 or betterMinimum RTX 2070; recommended RTX 3080 or better

⚖️ Analysis

Visual Fidelity: The Pimax Crystal delivers dramatically sharper visuals with its ultra-high resolution and 35 PPD, compared to the VIVE Pro Eye’s ~13 PPD.

Eye Tracking: Both support integrated eye tracking at 120 Hz, but the Pro Eye offers proven accuracy (0.5°–1.1°) with foveated rendering support, while Crystal leverages eye tracking more for IPD adjustment and FOV optimization.

Tracking Approach:

  • Pro Eye relies on external SteamVR Lighthouse base stations for robust tracking, ideal for precise room-scale use.
  • Crystal offers speaker-based inside-out tracking, simplifying setup, with optional external tracking for enthusiasts.

Portability & Power: Crystal can operate standalone or tethered, powered by an XR2 chipset and headstrap batteries—Pro Eye is PC-only, though wireless via third-party adapter is supported.

Comfort and Ergonomics: Both are well-balanced (~800 g), with adjustable fit and IPD controls. Crystal may feel heavier with battery, but offers good balance 😉

Additional information

Weight65 lbs
Dimensions36 × 42 × 30 in
